Platform For Experimentation
Unlock Possibility. Grow With Every Grind.

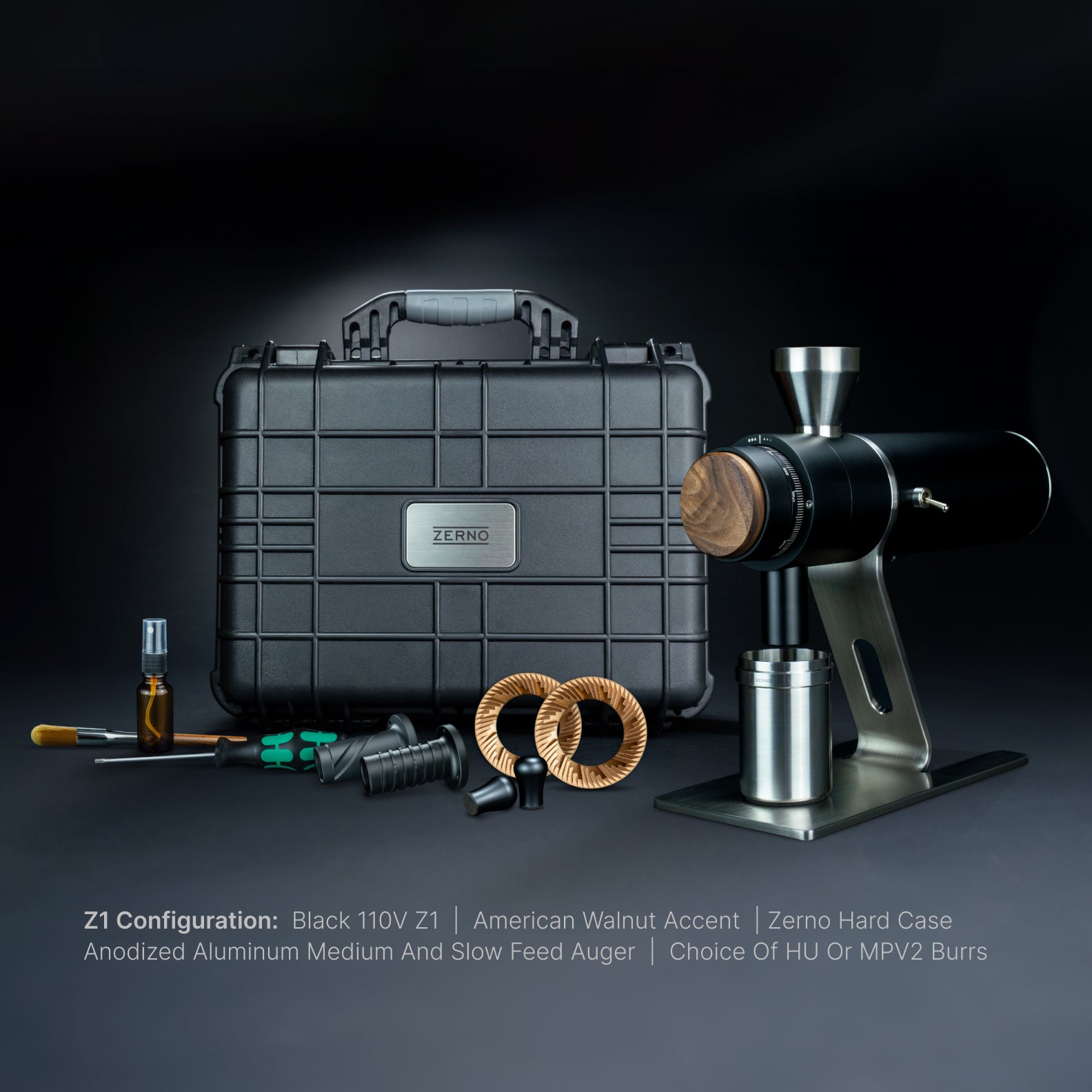

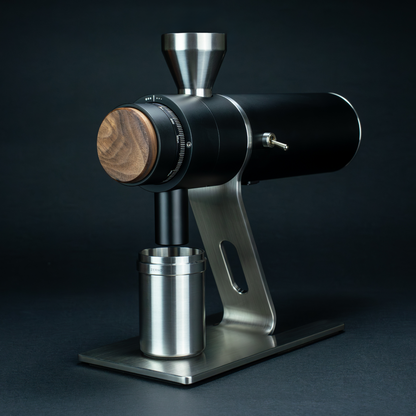

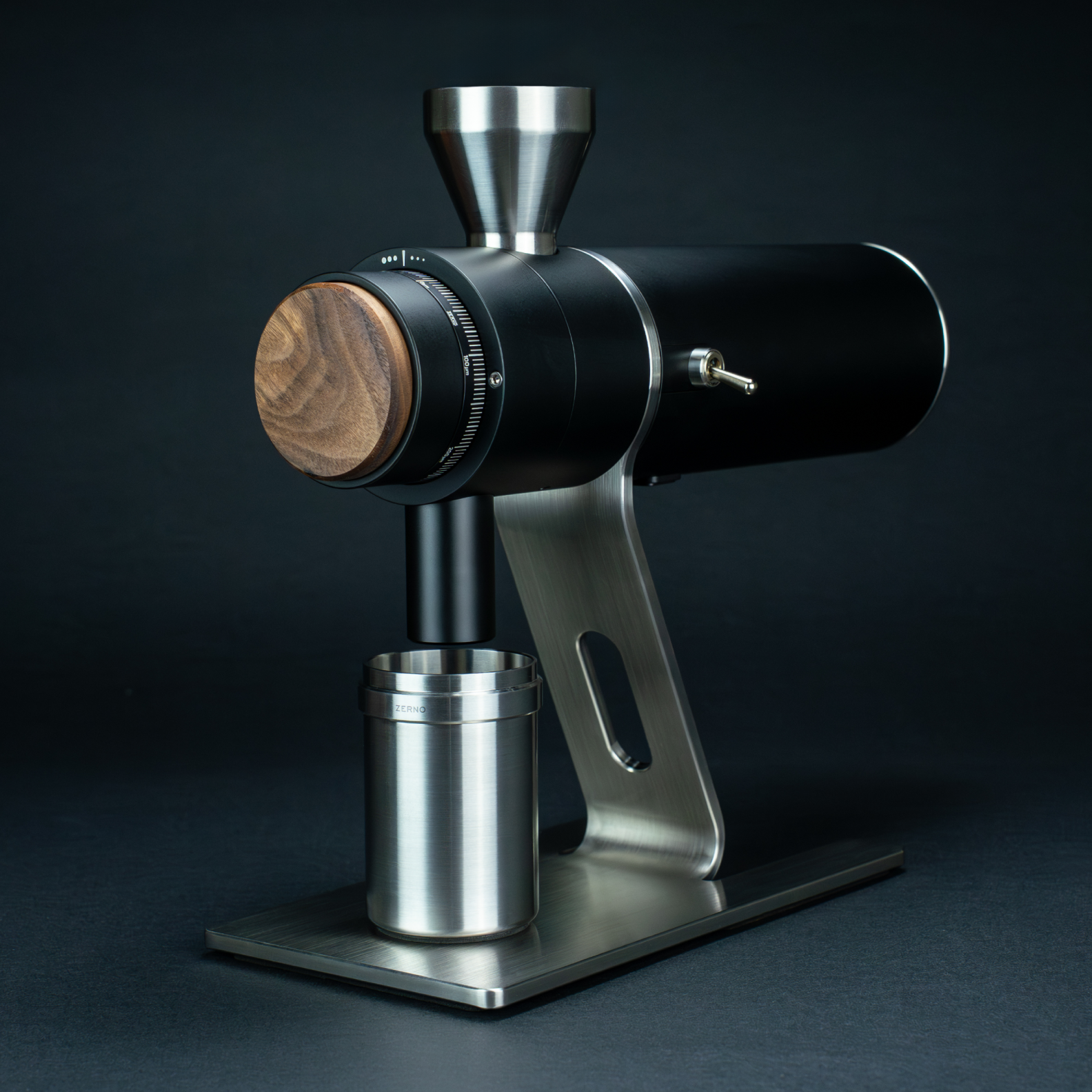

The Z1 was built for exploration — a foundation for those learning, dialing, and evolving. With support for a wide range of 64mm burrs, it invites you to experiment, swap, and refine without starting over.
All of that flexibility lives inside a compact footprint. The Z1 fits effortlessly into any space while giving you fast access to burrs, intuitive alignment, and the freedom to explore new profiles — from espresso to pour-over and beyond.
product specs
Platform Overview
Brewing Methods: Universal - All Methods
Burr Size: 64mm
Burr Mounting: Blind and Traditional
Footprint: 12.1" x 5.1" x 11.3"
Components: Stainless Steel & Aircraft Grade Aluminum
Prebreaker: Medium and Slow Feed
Motor: 300W Brushed AC
Voltage: 100 - 110V and 200 - 240VAC
Rotation Speed: 900RPM
Grind Range: 0 - 1400um
Grind Adjustment: Stepless and Front Facing
Hyperalignment: <25um alignment
Auger Prebreaker System
Smarter Feed. Cleaner Workflow.
The Z1’s modular slow-and-medum feed rate auger and prebreaker system help guide and crack beans before they reach the burrs, while the auger ensures a steady, controlled feed — promoting consistency across brew methods.
Designed give you more control, this system helps new users and seasoned baristas alike get better results, cup after cup.
Brushed AC Motor
Reliable Performance. Proven Power.
Under the hood of the Z1 is a 300W brushed AC motor—compact, consistent, and powerful. Designed for home use but built with durability in mind, the Z1’s motor delivers reliable torque and steady grind speeds with every use.
Operating on either 100–120VAC or 220–240VAC input, it maintains a consistent 900 RPM, offering a familiar feel and performance trusted by prosumers around the world.
Precision Micron Dial
Luxurious Feel. Control Every Micron.
At the front of the Z1 sits the smoothest precision micron dial in the industry.
Built with an internal brass thread and mounted on a German ball bearing, the dial delivers feedback you can feel—precise, fluid, and tactile.
Setting the zero point is effortless, accurate, and repeatable. You’ll feel when the burrs touch—just like sensing road texture in a high-performance sports car. It’s feedback made physical, the interface between human and machine.
The Z2’s magnetic accent piece allows quick, tool-less access to the zeroing mechanism and creates opportunities for personalization.
Whether matched to a kitchen, café, or personal taste, it’s designed to adapt seamlessly—simple, functional, and made to look right at home in any setting.
Grind range: 0-1400um
Burr size: 64mm
Burr mounting: Blind and Traditional
Adjustment type: Stepless
Weight: 6.5kg ~ 14.3lbs
Height: 287mm ~ 11.3” (including funnel)
Length: 307mm ~ 12.1”
Width: 130mm ~ 5.1″ (at the base)
Body Diameter: 84.25mm ~ 3.3”
Power: 300W
Input Voltage: 100-120VAC or 220-240VAC
Rotation Speed: 900RPM
Grind range: 0-2000um
Burr size: 80mm
Burr mounting: Blind and Traditional
Adjustment type: Stepless
Weight: 10.1kg ~ 22.3lbs
Height: 312mm ~ 12.3” (including funnel)
Length: 341mm ~ 13.42”
Width: 130mm ~ 5.1″ (at the base)
Body Diameter: 105mm ~ 4.1”
Power: 600W
Input Voltage: 100-240VAC
Rotation Speed: 800-2000RPM
